China cabinet slider rail production line for sales, equipment including cabinet slide forming machine and installation machine for cabinet slide rail. There are manual type and automatic assembly lines.

описание продукта

Cabinet slide rail production line for sales


How to making a completed set cabinet slide rail?


Ⅰ, Drawer slide roll forming machine

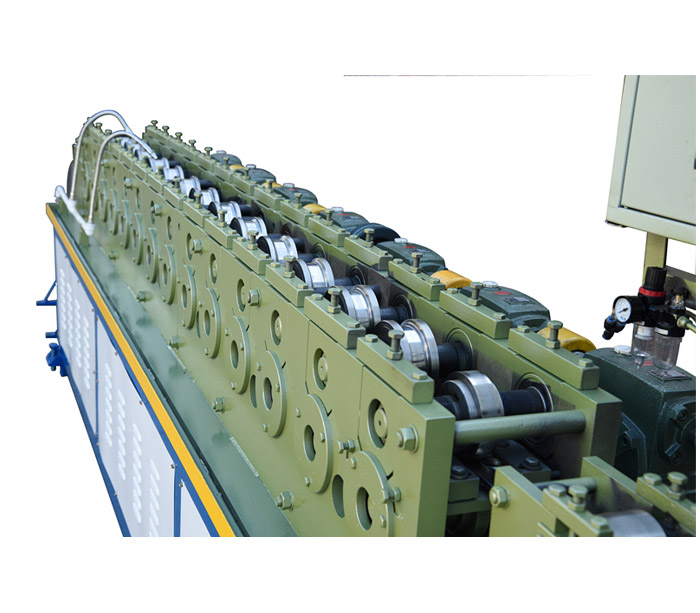

There are 3 sets roll forming machine for making drawer slide.

Outside rail roll forming machine

Middle rail roll forming machine

Inner rail roll forming machine


Technical Parameters
Model
SP-3012
Product Name
Slide rail roll forming machine
FunctionForming drawer slide profiles
DriveChain
Roller Seat
A3 steel
Roller stations
Outrail roll forming 16 station, middle and inner rail 14 stations.
Forming roller
#45, CNC machining after heat treatment
Motor power of forming machine
7.5 kw
Line speed
8--13m/min
Thickness of material
0.8--1.4mm
Motor power of hydraulic station
7.5kw
PLC/Touch screen
Panasonic


Slide rail making machine China manufacturer


2,Bead rack (ball case) punch machine 18T


Punch machine for producing beack rack metal parts for slide rail 10-24 inch bead frame.

This set including simple uncoiler and feeder and 18T punch.

Cabinet slide rail production line for sales



Bead rack photo as below show

Slide rail making machine China manufacturer


3, Bead press machine


Assembling bead into plastic strip, high efficiency and easy handle

Slide rail making machine China manufacturer


4, Full-automatic assembly machine


include the machine of automatic put the fish-shape plastic to the rail


Component structure:

Eectric appliance, PLC (Mitsubishi 60Z) 2 sets

40Z 2 setstouch screen(Kinco)4sets

Servo motor (1000W 1set, 400W 1set)

Stepper motor (110 stepper motor 1set, 86 stepper motor 2sets)

Gear reducer motor (total 7 sets)

Frequency changer (Schering 2sets)

Vibration disk (4sets).

Slide rail making machine China manufacturer

Cabinet slide rail full-automatic assembly machine

Machine construction

1,inner rail automatic riveting machine

2,assembly main machine

3,slope conveyor

4.plane conveyor belt

5.outside rail bending machine

6.clamp bead stip manipulator

Total net weight: 1580KG,

Size, L9.5m x W3.5m x H1.5m

Voltage 220V,

Working range 10 to 24 inch

Frequency 50 to 60HZ,

working efficiency 32 pcs/min, Power 2.8KW


Automatic cabinet slide assembly machine in workshop

Slide rail making machine China manufacturer


Cabinet slide manual assembly machine optional

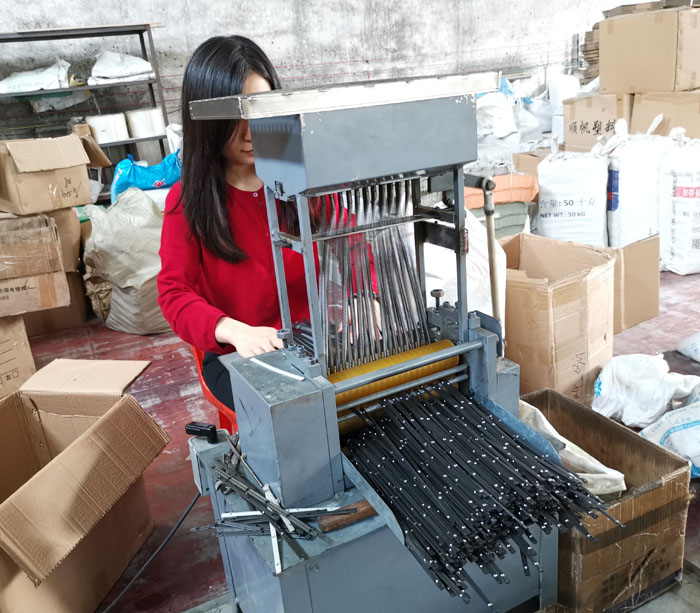

(A) Bead assembly machine

This bead assembly machine including install the middle rail bead and M type plastic.

Cabinet slide rail production line for sales

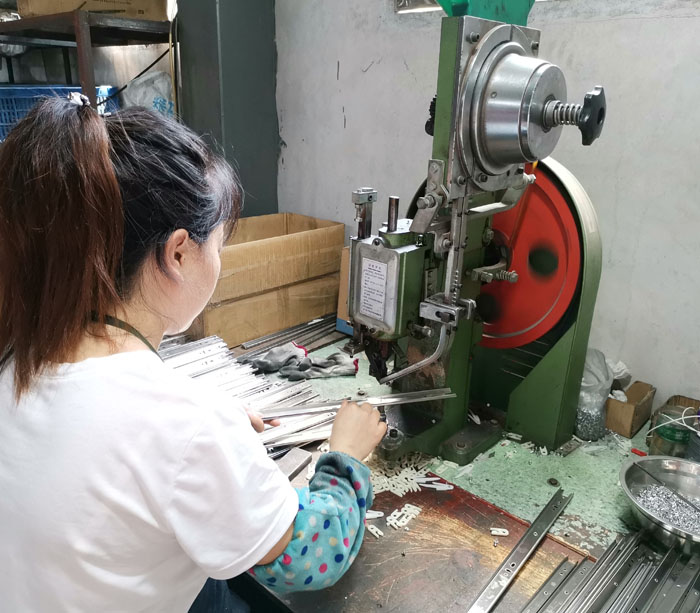

Plastic fish riveting machine

This small machine assembly plastic fish shape

Cabinet slide rail production line for sales

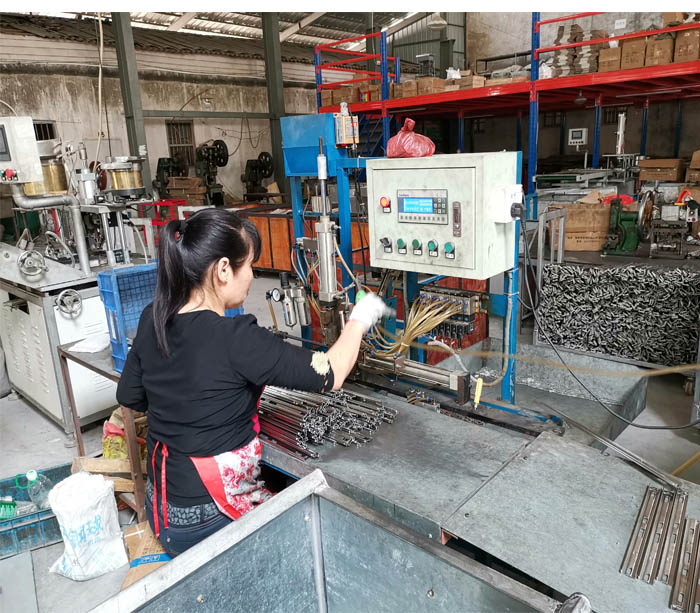

Pneumatic pressure machine

This machine for install the outer rail end of the tail bends, 8 shape plastic install by hand.

Cabinet slide rail production line for sales





характеристики продукта

Cabinet slide rail production line from rail profile roll forming process untill completed slide rail installation.

1, High technology, simple operation, durable forming line

2,Ajustable length setting.

3, PLC Constrol system

The whole line technological process: material rack----main engine----cutting off---- collecting material

The main forming frame is use 100mm*80mm*3mm rectangular tube, T. 25mm A3 carbon steel plate full welding, and process by milling machine table of the gantry milling machine.

The forming wall panel adopt 40mm thickness panel.

модель и смысл

SP-3012

Slide rail making machine for making telescopic channel

Slide rails, also name as guide rails and telescopic channel, are fixed on the cabinet of the furniture, and the drawers or cabinet panels of the furniture are connected to the movable hardware connecting parts. The slide rails are suitable for the drawer connection of furniture such as cabinets, bathroom cabinet, furniture, briefcases and other wooden and steel drawers.
